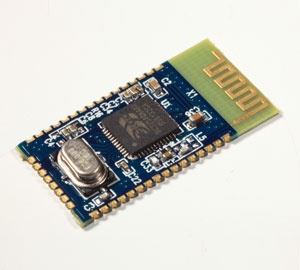

BK3254 F-6888 Bluetooth Audio Module

BK3254 F-6888 Bluetooth Audio Module

F-6888 is the Bluetooth 4.1+EDR module for intelligent wireless audio transmission products designed by our company and qualified by SIG with QDID: 79808. F-6888 also is the low cost stereo audio Bluetooth solution with high performance. The main chip use


  • Product No.: F-6888

Details

Basic Parameter
Model F-6888 V1.1
BLUETOOTH Bluetooth V4.1
SUPPLY VOLTAGE: DC3.3-4.2V
BLUETOOTH Protocol HFPV1.5,A2DPV1.2,AVRCPV1.4,GAVDP v1.2, AVDTP v1.2, SPP v1.2, AVCTP v1.3
WORKINGCURRENT ≤45mA
STANDBY CURRENT <500uA
TEMPERATURE RANGE -40ºC to +80ºC
WIRELESS TRANMISSION RANGE: >10m
TRANSMISSION POWER: CLASS2,4dbm
SENSITIVITY: -80dBm<0.1%BER
FREQUENCY RANGE: 2.402GHz-2.480GHz
Interface: I2C, SPI and UART interface
AUDIO PERFORMANCE SBC algorithm
THE AUDIO SNR: ≥75dB
MODULE SIZE 25X13.5X1.8MM

Feature
Support the intelligent voice prompt and the function of times
Integrated TF card play function
Integrated mobile U disk broadcast function
Support the internal LINE - IN
Support the internal FM radio

Application
Bluetooth speaker
Bluetooth audio device
Bluetooth stereo headset
Bluetooth amplifier
