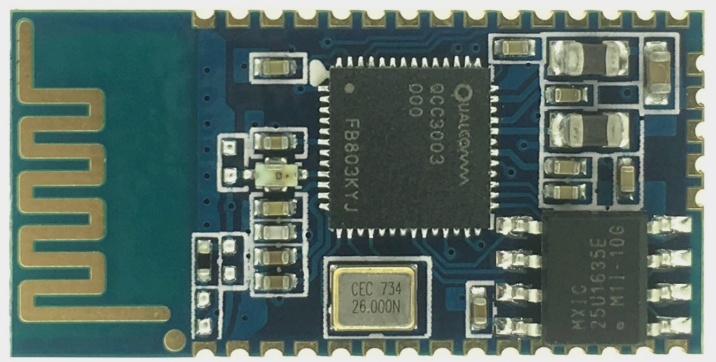

Wireless audio transmission module QCC3003 F-3309
Parameters:
P/N: F-3309(QCC3003)V1.0
Bluetooth version: BluetoothV5.0
Modulation mode: GFSK, π/4DQPSK,8DPSK
Service voltage: 3.3-4.2V
P/N: F-3309(QCC3003)V1.0
Bluetooth version: BluetoothV5.0
Modulation mode: GFSK, π/4DQPSK,8DPSK
Service voltage: 3.3-4.2V
Bluetooth protocol : A2DP v1.3.1, AVRCP v1.6, HFP v1.7, HSP v1.2, SPP v1.2, DID v1.3,HID v1.1,PXPv1.0.1,FMPv1.0,BASv1.0
Working Current : ≤20mA
Standy Current : <500uA
Temperature range : -40ºCto+80ºC
Wireless transmission range: ＞10 meters
Transmission power : CLASS2 <4dBm
Sensitivity: -85dBm<0.1%BER
Frequency range : 2.402GHz-2.480GHz
The external interface: PIO,SPI,AIO,UART,USB,I2S,MIC,LIN,SPK(L/R)
Support system : android，IOS and windows
Audio decoding output : SBC ,AAC
Audio: SNR ≥80dB
Degree of distortion: ≤0.1%
Module size :26*14*2MM
Product overview:
F-3309(QCC3003) is the Bluetooth module for intelligent wireless audio transmission products designed by our company . F-3309 also is the high end stereo audio Bluetooth solution with high performance. The main chip uses Qualcomm QCC3003 chip, providing the high quality and best compatibility. Without any driver, you can connect the module with your device to enjoy the high quality music easily.
Main Features:
BluetoothProfiles
※ 80MHz RISC CPU and80MHz Qualcomm ®Kalimba™DSP
※ On-chip ROM,RAM,and,external QSPI flash memory
※ Link Layer and Dual Mode Topologies
※ Over the air updates of external Flash partitions
※ Wideband speech support
※ Stereo Codec
※ Stereo line input
※ SBC and AAC audio codecs support
※1-mic cVc headset NR/EC
※ Bluetooth HID remote camera control
Working Current : ≤20mA
Standy Current : <500uA
Temperature range : -40ºCto+80ºC
Wireless transmission range: ＞10 meters
Transmission power : CLASS2 <4dBm
Sensitivity: -85dBm<0.1%BER
Frequency range : 2.402GHz-2.480GHz
The external interface: PIO,SPI,AIO,UART,USB,I2S,MIC,LIN,SPK(L/R)
Support system : android，IOS and windows
Audio decoding output : SBC ,AAC
Audio: SNR ≥80dB
Degree of distortion: ≤0.1%
Module size :26*14*2MM
Product overview:
F-3309(QCC3003) is the Bluetooth module for intelligent wireless audio transmission products designed by our company . F-3309 also is the high end stereo audio Bluetooth solution with high performance. The main chip uses Qualcomm QCC3003 chip, providing the high quality and best compatibility. Without any driver, you can connect the module with your device to enjoy the high quality music easily.
Main Features:
BluetoothProfiles
※ 80MHz RISC CPU and80MHz Qualcomm ®Kalimba™DSP
※ On-chip ROM,RAM,and,external QSPI flash memory
※ Link Layer and Dual Mode Topologies
※ Over the air updates of external Flash partitions
※ Wideband speech support
※ Stereo Codec
※ Stereo line input
※ SBC and AAC audio codecs support
※1-mic cVc headset NR/EC
※ Bluetooth HID remote camera control
※ Audio interfaces: I²S and PCM,analog and digital microphone
※ Fully configurable EQ:6 banks for music enhancement;1 bank for speaker
※ Serial interfaces: UART,USB2.0,and I²C
※ Integrated dual switch-mode regulators,linear regulators,and battery charger
※ Fully configurable EQ:6 banks for music enhancement;1 bank for speaker
※ Serial interfaces: UART,USB2.0,and I²C
※ Integrated dual switch-mode regulators,linear regulators,and battery charger
