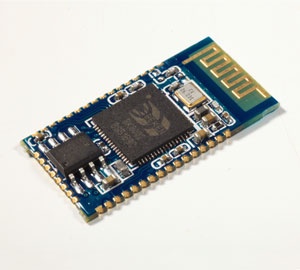

BK8002 F-6388 V2.0 bluetooth audio module

BK8002 F-6388 V2.0 bluetooth audio module

wireless audio transmission,low cost stereo audio Bluetooth solution


  • Product No.: F-6388

Details

Parameters:
Model F-6388 V2.0
Bluetooth version Bluetooth V2.1
Supply voltage DC2.8-4.2V
Bluetooth protocol HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2, GAVDP1.2,IOP
Working current ≤60mA
Standby current <500uA
Temperature range -40ºC to +85ºC
Wireless transmission range >10m
Transmission power CLASS2,4dbm
Sensitivity -80dBm<0.1%BER
Frequency range 2.4GHz-2.480GHz
External interface I2C, SPI and UART interface
Audio performance SBC algorithm
Audio SNR ≥75dB
Module dimension 25X13.5X1.8MM


Product overview:

    F-6388the Bluetooth 2.1 module for intelligent wireless audio transmission products designed by our company. F-6388 also is the low cost stereo audio Bluetooth solution with high performance. The main chip uses BEKEN BK8002 chip, providing the high quality and best compatibility. Without any driver, you can connect the module with your device to enjoy the high quality music easily.Support SPP;support smart voice prompt and report function;with TF card play function; support MP3/WMA/WAV format;support internal LINE-IN;external FM.
