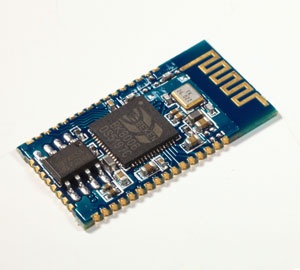

BK8006 F-6388 bluetooth audio module
|
Model |
F-6388 V1.0 |
|
Bluetooth version |
Bluetooth V2.1+EDR |
|
Supply voltage |
DC2.8-4.2V |
|
Bluetooth protocol |
HFPV1.5, A2DPV1.2, AVRCPV1.4, HSP1.2, GAVDP1.2，IOP |
|
Working current |
≤45mA |
|
Standby current |
<500uA |
|
Temperature range |
-40ºC to +85ºC |
|
Wireless transmission range |
>10m |
|
Transmission power |
CLASS2，4dbm |
|
Sensitivity |
|
|
Frequency |
2.4GHz-2.480GHz |
|
External interface |
I2C, SPI and UART interface |
|
Audio performance |
SBC algorithm |
|
Audio SNR |
≥75dB |
|
Module dimension |
25X13.5X1.8MM |
Product overview:
F-6388 is the Bluetooth 2.1+EDR module for intelligent wireless audio transmission products designed by our company . F-6388 also is the low cost stereo audio Bluetooth solution with high performance. The main chip uses BEKEN BK8006 chip, providing the high quality and best compatibility. Without any driver, you can connect the module with your device to enjoy the high quality music easily.Support SPP;support smart voice prompt and report function；with TF card play function；support MP3/WMA/WAV format; support internal LINE-IN；external FM.
