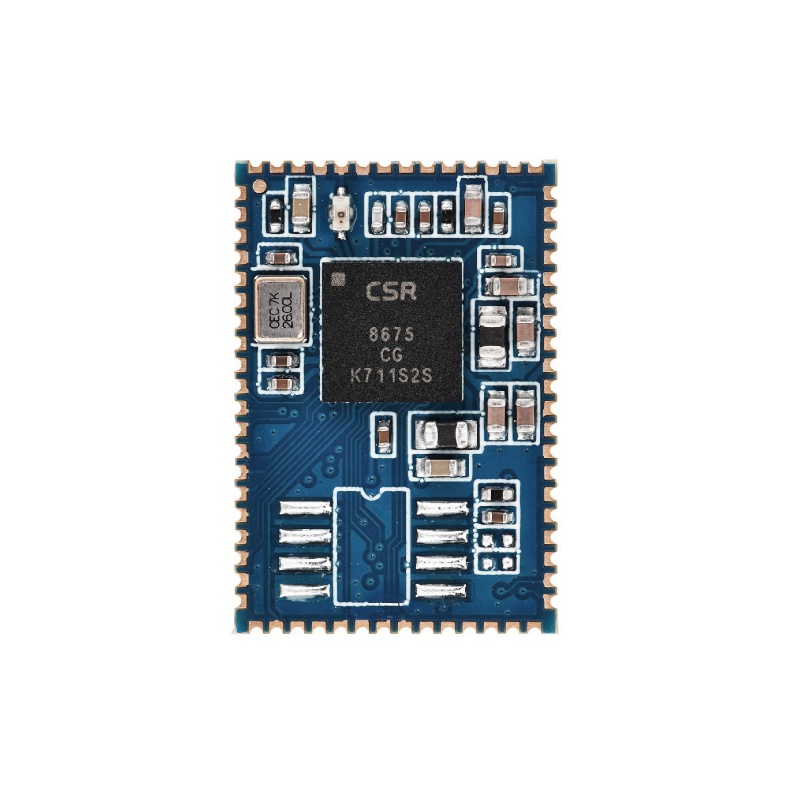

CSR8675 Bluetooth audio aptX module

CSR8675 Bluetooth audio aptX module
  • CSR8675 Bluetooth audio aptX module

BLM-BTM875 is Bluetooth 5.0 audio module. It supports SBC, AAC, aptX, aptX ll, aptX HD decoding, without call function. The module supports analog output by default. I2S and SPDIF output are available, could work with high quality speaker, headset and oth


  • Product No.: BLM-BTM875

Details

 Basic Parameter:

Bluetooth Module

BLM-BTM875

Bluetooth version

Bluetooth V5.0

Chipset

CSR8675 BGA

Service voltage

2.8~4.2V

Bluetooth protocol

A2DP v1.3.1, AVRCP v1.6, HFP v1.7, HSP v1.2, MAP v1.1, PBAP v1.1.1, DID v1.1

Interface

PIO, SPI, AIO, UART, USB, PCM, I2S, SPDIF, SPK(L/R)

Temperature range

-40ºCto+80ºC

Support system

Android, IOS and windows

Audio decoding output

AAC, SBC, aptX, aptX HD, aptX LL

Module size

15*22*2.5mm


Apllication:

 ● Stereo Headsets

 ● Wired Stereo headsets and headphones

 ● Portable Bluetooth Stereo speakers

Documents:

Name: BLM-BTM875 Datasheet                               Download
