Cheap price BLE 5.1 master-slave module

Cheap price BLE 5.1 master-slave module

BLM-BT01B is a low-power Bluetooth-related product module for SOC (System on Chip) development. It supports 2.4GHzBLEV5.1 protocol. It includes and is fully compatible with Bluetooth V5.0. The module uses CortexM3 processor. Powerful computing power.


  • Product No.: BLM-BT01B

Details

Basic Parameter:

Bluetooth module model

BLM-BT01B

Bluetooth version

Bluetooth BLE 5.1 mode

Dimension

26.9mm*13mm*1.9mm

Transmit power

maximum 10 dBm

Profiles

GATT, USB-HID

Interface

PIO, SPI, UART

Work temperature

-40ºC to +80ºC



Application subsystem:
  • Bluetooth light control
  • Low Energy Bluetooth Smart Lock
  • loT BLE sensor network
  • Smart home
  • Bluetooth POS machine .
  • Handheld PTZ camera
  • HID remote control .
  • Voice remote control
  • iBeacon .
  • Electronic medical equipment

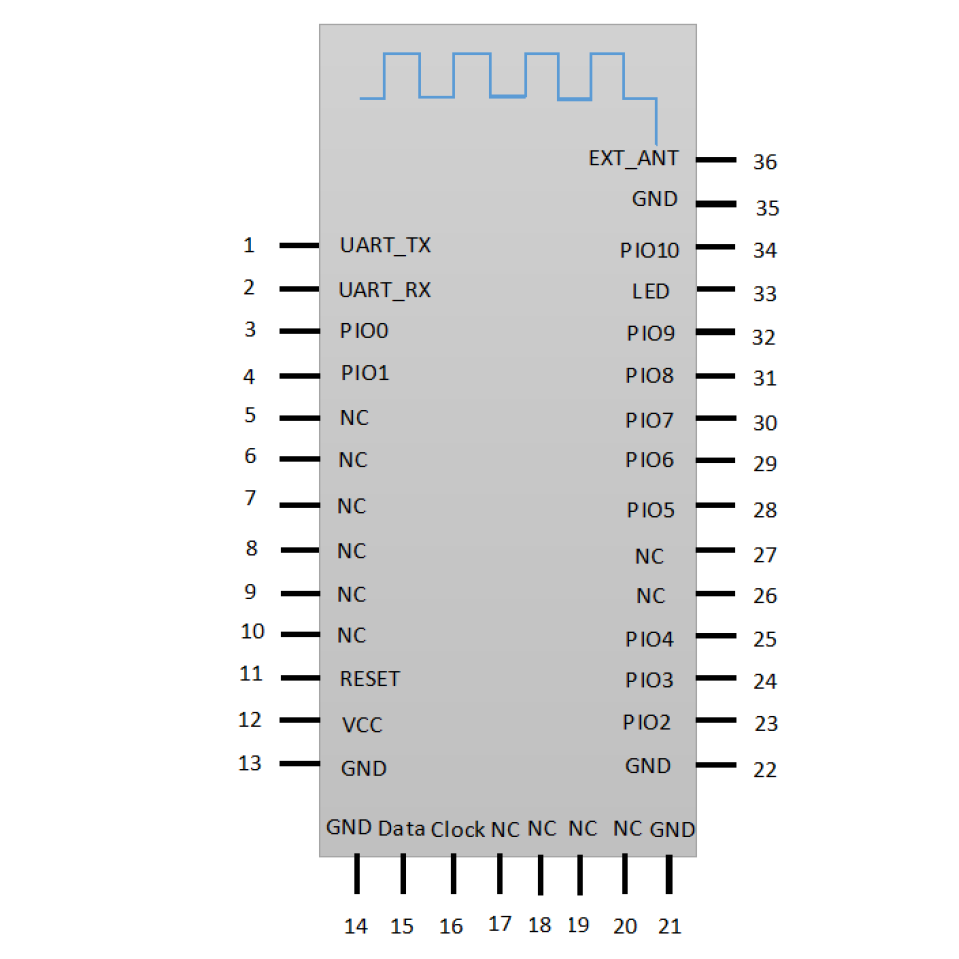

Pin Definition:



Documentation:

Name:  YDK-BT01B Datasheet V1.2.pdf                                             Download
