Bluetooth 5.0 Audio Module Qualcomm QCC3021 Wireless Module
Bluetooth Module Model |
F-3020A |
Bluetooth Version |
BluetoothV5.0 |
Chipset |
QCC3021 |
Modulation Mode |
GFSK, π/4DQPSK,8DPSK |
Service Voltage |
3.3-4.2V |
Bluetooth Protocol |
HFPV1.6, HSPV1.2, A2DPV1.2, AVRCPV1.0, PBAP, SPP, OPP, GOEP, FTP, HID |
Working Current |
≤30mA |
Interface |
PIO, SPI, AIO, UART, USB, I2S, MIC, LIN, SPK(L/R) |
Standy Current |
<50uA |
Temperature Range |
-40ºCto+80ºC |
Wireless Transmission range |
>10 meters |
TXPOWER |
CLASS1/CLASS2/CLASS3 |
Support System |
android,IOS and windows |
Audio Decoding Output |
AAC, MP3, SBC, AAC+ Faststream, APTX, |
Module Size |
21.5*17.5*3MM |

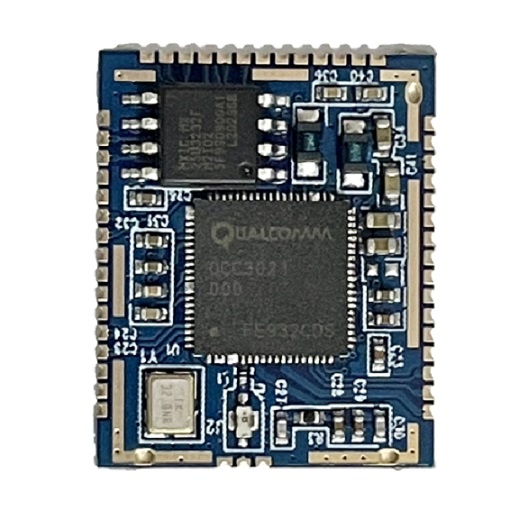

The F3020A Bluetooth module is an intelligent dual-mode wireless audio data transmission product. It is a low-cost and high-efficiency stereo wireless transmission solution. The module uses the QCC3021 chip to provide the module with high-quality sound quality and compatibility, and the overall performance is more optimized. The F3020A Bluetooth module adopts a driver-free mode. Customers only need to connect the module to the application product to quickly realize the wireless transmission of music and enjoy the fun of wireless music.
Bluetooth Profiles
- Qualified to Bluetooth v5.0 specification including 2 Mbps Bluetooth low energy (Production parts)
- Single ended antenna connection with on-chip balun and Tx/Rx switch
- Bluetooth, Bluetooth low energy, and mixed topologies supported
- Class 1 support
-
Audio subsystem
- 32-bit Kalimba audio digital signal processor (DSP) core with flexible clocking from 2 MHz to 120 MHz to allow
- Optimization and trade-off performance vs. powerconsumption
- DSP runs from ROM
- 80 KB program random access memory (RAM)
- 256 KB data RAM
- 5 Mb ROM
Application subsystem
- Dual core application subsystem 32 MHz operation
- 32-bit Firmware Processor:
- Reserved for system use
- Runs Bluetooth upper stack, profiles, house-keeping code
- 32-bit Developer Processor:
- Runs developer applications
- Both cores execute code from external flash memory using QSPI clocked at 32 MHz
- On-chip caches per core allow for optimized performance and power consumption
